Ultrasound System For Spot Welds Quality Control

We have partnered up with an industry leader to accelerate the delivery of the best in class NDT ultrasound sensing system to the UK and European markets. This collaboration enables us to bring top products faster to you.

P R E M I U M   N D T   U L T R A S O U N D   S Y S T E M

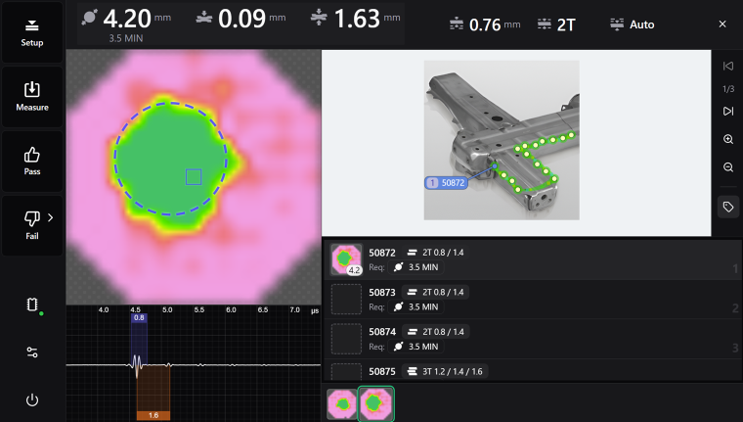

Designed for real-time, non-destructive imaging of resistance and laser spot welds including automatic estimates of nugget diameter and indentation. The system is designed for industrial quality control and structural integrity assessment. Features include intuitive user interface with a part and workflow editor, cloud-based or local network data management and storage.

Technical Advantages:

1. High Resolution Mode: device provides high resolution weld imaging, quadrupling the resolution of the nominal array size.
2. Improved Ultrasound Beam Directivity: co-driven ultrasonic elements provide higher directivity reducing sensitivity to angulation due to channel multiplexing redesign implemented in the probes.

Software Advantages:

1. Modern Software: software is built using modern tools and programming languages, ensuring better future updates, scalability, bug fixes and improved long term maintenance.
2. User-Friendly Interface: UI is optimized for ease of use with dynamic widgets, responsive design and features like automatic screen rotation and multitouch capability.
3. Real-Time Process Control: device allows for real-time data viewing to support welding process control, with plans for further development.
4. Customizable Database: database can be configured to meet specific requirements, with support for various database management systems.

Probe and Hardware Advantages:

1. Field-Replaceable Cable: device has a field-replaceable over-molded cable, reducing maintenance costs and downtime.
2. Optimized Probes: probes have built in data storage, ensuring future-proofing and software flexibility for updates.
3. Stainless Steel Probe Housing: probe housing is fully potted and made of stainless steel, providing durability and lasting protection.

Security and Compatibility:

1. Cybersecurity: device has modern security features, including digital signatures and secure data storage.
2. Compatibility: device is compatible with various systems, software can be deployed on local PC or server with plans for network streaming.

Service and Support:

1. Warranty: we offer 1-year warranty on all products, with options for extended warranty and long term support.
2. Training and Support: we provide step-by-step training and local support, with a focus on user experience and ease of use.
3. We provide software updates, service, device upgrades and technical support locally.

Other Benefits:

1. Faster Data Acquisition: device allows for faster data acquisition and processing, enabling quicker decision-making.
2. Improved Accuracy: device provides more accurate results, reducing errors and improving overall quality.
3. Cost-Effective: device is designed to be cost-effective, with features like field-replaceable cables and replaceable probes.

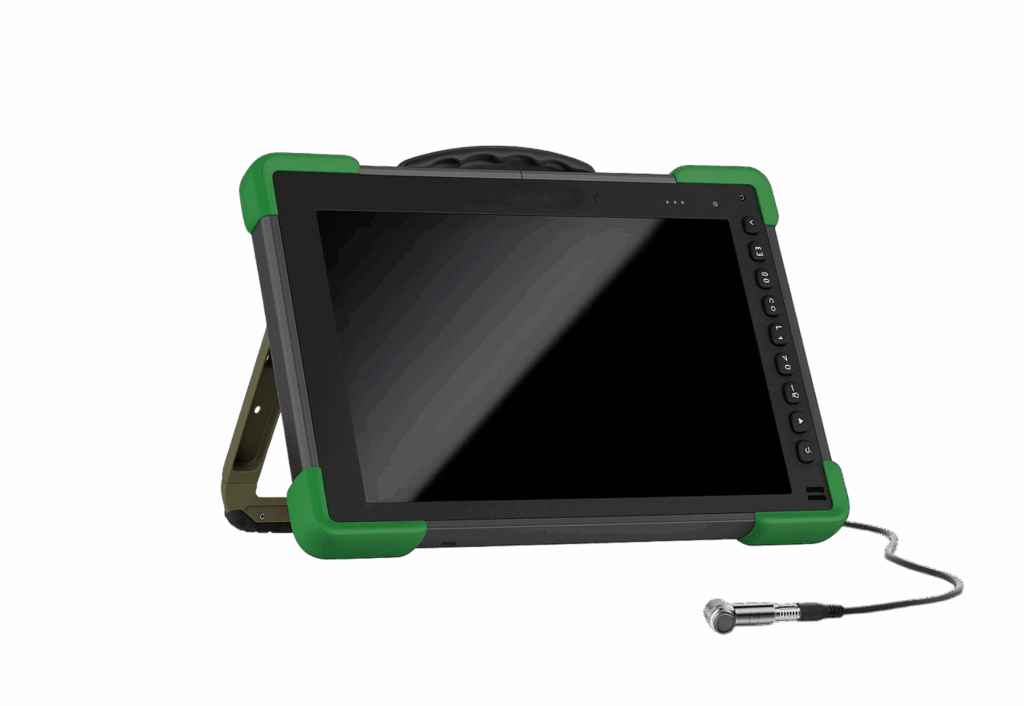

CRAFTED Model A25 is the result of years of experience in ultrasound NDT product development.

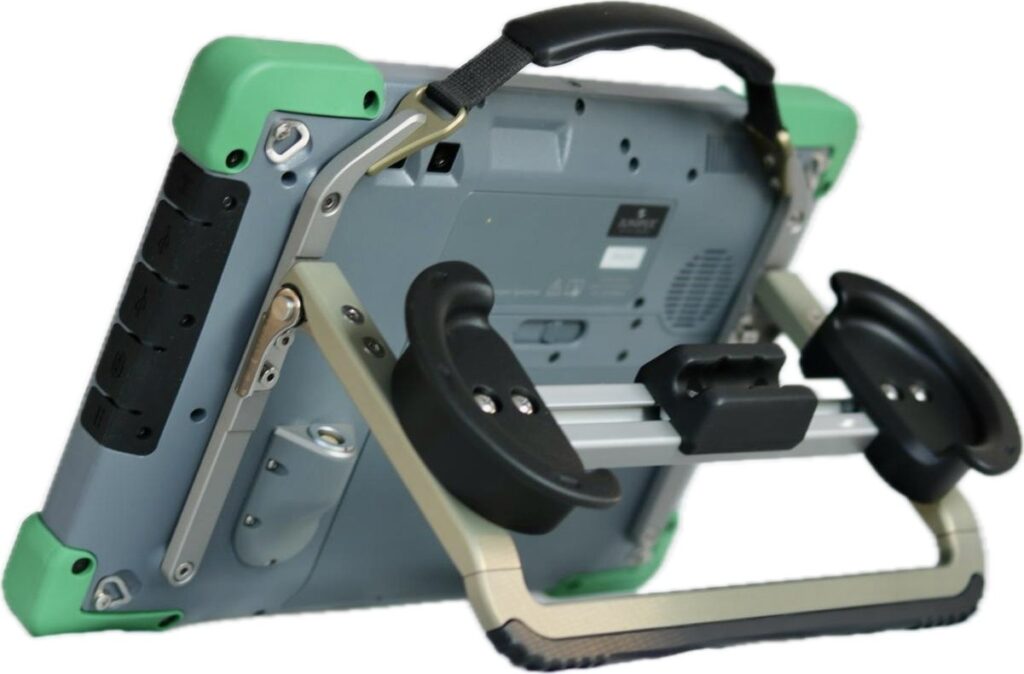

BUILT TO LAST Drop tested to military standards and beyond. Shockproof unit with Dragontrail™ glass protected screen. Stainless steel probe fully encapsulated with epoxy potting for moisture ingress protection longevity. Field replaceable cable with quick connects. Integrated and angle adjusted stand with handle. Built for tough industry.	FAST CONNECT ULTRASOUND ARRAY PROBES Selectable probe shapes. Each probe includes array of 69 individual ultrasonic transducers embedded in a steel housing with miniaturized electronics to allow for digital data transfer. Transducers protected with disposable active contact area.
FULL DAY OPERATION  Powerful processing unit and high component specification with hot-swappable batteries provide non-stop operation with top class responsiveness. High visibility, best-in-class multi-touch display.	COMPREHENSIVE SOFTWARE SOLUTION Software provided for both part configuration with inspection sequence editor, pass/fail criteria, report generation and data sync. On device software for ultrasound data interpretation, image generation and data capture interface. Simple, intuitive and easy to use software, stress-tested in the field.

Reach out to us to get more information about the product and schedule a demo.
